Popis

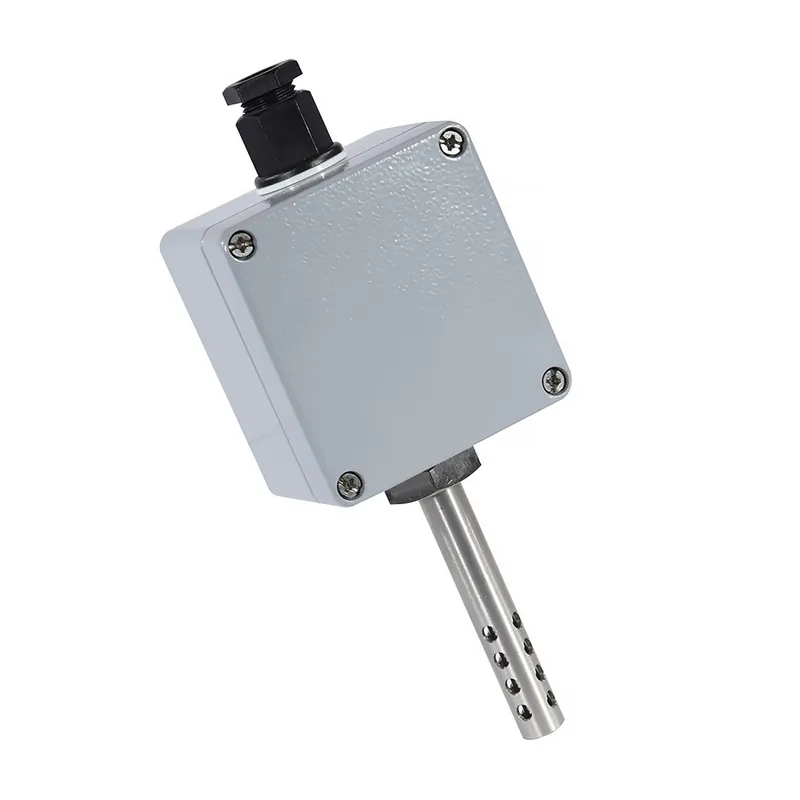

OMEGAs rugged air temperature sensors EWSA series offer the perfect solution for temperature monitoring outdoors or in demanding environments. A 6 mmdiameter sheathed RTD (Pt100, Pt1000) probe is housed in the centre of a 12.7 mm outer protection tube which is drilled to improve airflow around the sensor.
A 4-terminal connector block or 4 to 20 mA transmitter are housed in a tough aluminium alloy enclosure rated to IP65. A cable gland is fitted on the opposite side of the enclosure to the sensor, suitable for cables from 2.5 to 6.5 mm diameter.
SPECIFICATIONS:
Dimensions:
Box: 80 W x 75 H x 58 mm D (3 x 2.9 x 2.3″)
Sensor: 75 mm long x 12.7 mm OD (2.9 x 0.5″)
Cable Entry: M20 Nylon gland for 2.5 to 6.5 mm (0.098 x 0.25″) OD cable
EWSA-PT100/PT1000:
Sensor Type: Thin film Pt100 / PT1000 class A 4 wire
Ambient Temperature Range: -50 to 100°C (-58 to 212°F)
Electrical Connection: Screw terminal block
EWSA-PT100-TX:
Ambient Temperature Range: -40 to 85°C (-40 to 185°F) at 10 to 90% RH non condensing
Standard Transmitter Scaling: 4 mA -25°C (-13°F), 20 mA at 75°C (167ºF)
Electrical Connection: Screw terminals, 2-wire
Power Supply: 10 to 30 Vdc, loop powered
Maximum Output Load: [(V supply-10)/20] k eg 700 @ 24V
