Popis

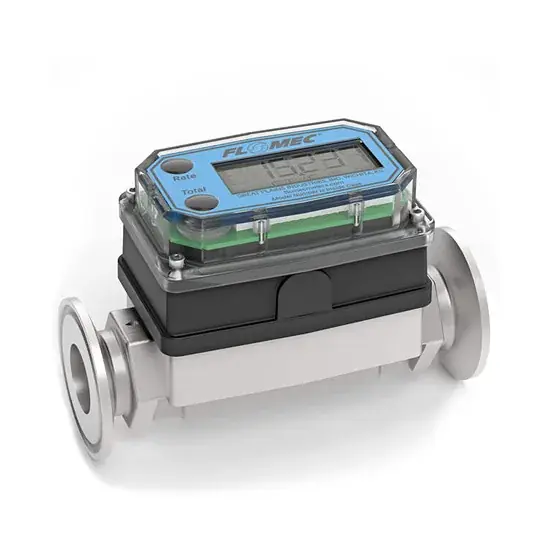

No more „eye-balling“ levels – Make your perfect recipe every time. G2 series High-Temp Sanitary meter is the best flow meter for brewing and other Food and Beverage Industry applications. It is highly dependable and affordable, making it a great choice for small-batch brewers. The G2-Series is extremely repeatable so quality control is easy to maintain.
Whether you measure strike water, sparge water, wort transfer to the fermenter, or your final batch volume, the G2 can help you at all grain brewing stages. The G2-Series is available as a Rate and Total Flow Indicator only, or with Indication and 4-20 mA and Pulse outputs.
SPECIFICATIONS:
Process Connection: Tri-Clamp
Meter Size: ½, ¾, 1, 1-1/2, 2
Corresponding Tri-Clamp Fitting: ¾, 1, 1-1/2, 2, 2-1/2
Housing Material: 316 Stainless Steel
Flow Range
½ (05): 3.8 – 38 LPM (1-10 GPM)
¾ (07): 7.676 LPM (2-20 GPM)
1 (10): 19190 LPM (5-5- GPM)
1-1/2 (15): 38380 LPM (10-100 GPM)
2 (20): 76760 LPM (20-200 GPM)
Accuracy (% of Reading):
½ (05): ±1.5%
¾ (07): ±1.0%
1 (10): ±1.0%
1-1/2 (15): ±0.75%
2 (20): ±0.75%
Sanitary Flange Pressure Rating: Limited by fitting, clamp size & temperature
Operating Temperature Range: With Display Q9 & 42: -18° C to 60°C (0° F to 140° F)
With Hi-Temp Riser H9: -18° C to 85°C (0° F to 185° F)
Typical K-Factor:
½ (05): 660 PPL (2500 PPG)
¾ (07): 291 PPL (1100 PPG)
1 (10): 149 PPL (565 PPG)
1-1/2 (15): 57 PPL (215 PPG)
2 (20): 26 PPL (100 PPG)
Wetted Materials: 316 SS, 96% Alumina Oxide Ceramic, Tungsten Carbide, PVDF
Complete informations can be found in the spec sheet (PDF), see the „Download“ section.
