Popis

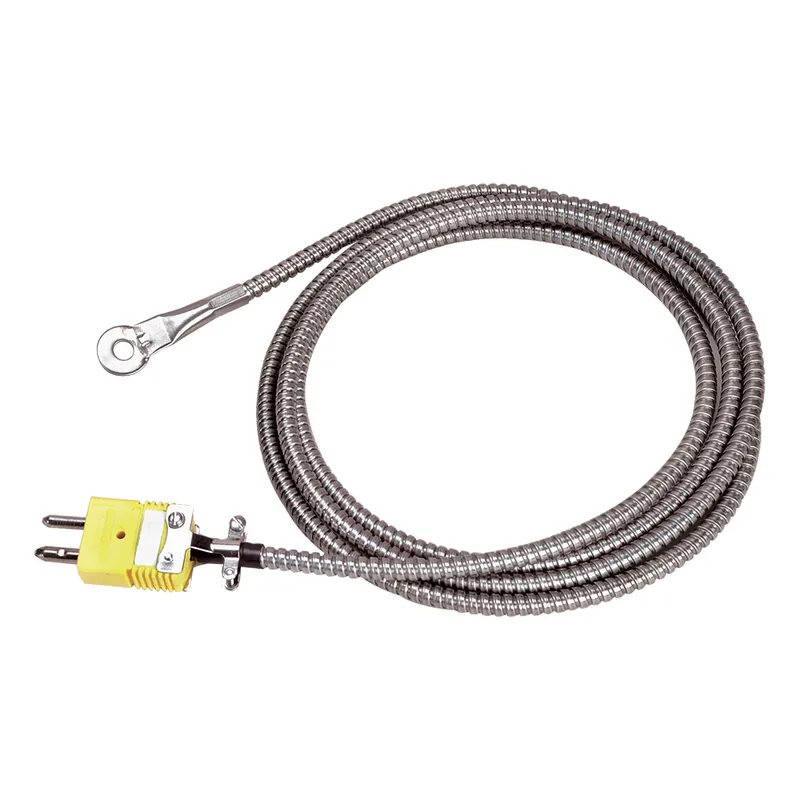

Rugged thermocouple, for surface mount applications. Rated to 480°C, has a washer mounting surface and an overall dimension of 17.3 mm O.D., with a 6.6 mm mounting hole of SS material. Attached to the mounting surface: 1,8 m of SS flexible armour cable with stripped wire ends. Armour cable has 7.0 mm O.D., with 1.8 mm washer thickness. Standard thermocouple plugs are available for cold-end termination.
Complete informations can be found in the spec sheet (PDF), see the „Download“ section.
Comes with bare stripped ends as standard. You can order the probe, including the installation of connectors. Put the required connectors in the basket together with the probe. If needed, order the required connectors separately, see „Related Products“ below.
