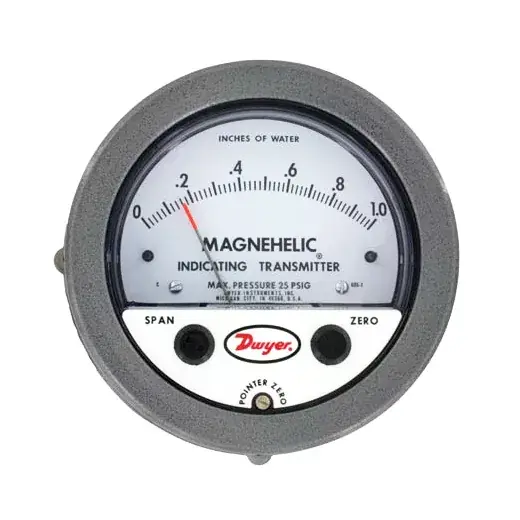

The Series 605 Magnehelic® Indicating Transmitter provides for both visual monitoring and electronic control of very low differential pressure. The Series 605 is ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when trouble shooting the system.
The easily read dial gage is complimented by the two-wire, 4 to 20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gage mechanical design and Series 600 transmitter technology. The two-wire design with terminal strip on the rear simplifies connection in any 4 to 20 mA control loop powered by a 10 to 35 VDC supply.
The online configurator may not contain all available options. If you do not find what you are looking for, please contact us.
SPECIFICATIONS:
Accuracy: Electrical: ± 4%, Mechanical: ± 4% (includes linearity, hysteresis, repeatability)
Compensated Temperature, Max: 48.9 °C
Compensated Temperature, Min: 0 °C
Operating Temperature, Max: 48.9 °C
Operating Temperature, Min: -6.67 °C
Dial Depth: 68 mm
Dial Dia: 4 in
Dial Outer Diameter: 127 mm
Electrical Connection: Screw Terminal
Electrical Output: current, 4 to 20 mA
Power Consumption: max 38 mA
Long Term Stability: ± 1% FS/year
Thermal Effects: ± 0.045% FS/°C
Loop Resistance: 0 to 1250max
Materials, Wetted: Consult Factory
Media Compatibility: Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases
Mounting Note: Vertical Diaphragm
Pressure Type: Differential
Process Connection Size: 1/8 in
Process Connection Type: NPT Female
Proof Pressure: Up to 10 psi
Span and Zero Adjustable Range: Protected Potentiometers
Supply Voltage: 10 to 35 Vdc
Weight: 811 g
Complete informations can be found in the spec sheet (PDF), see the „Download“ section.
