Popis

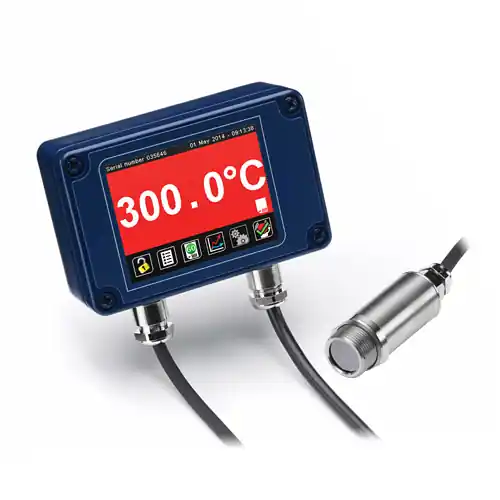

The OS-MINI has miniature sensing head to fit most applications and configurable electronics package. They use short wavelength measurement for low-emissivity targets such as steel rollers and other metal surfaces. Field of views from 15:1 to 75:1 plus a focus model are designed to fill most industrial requirements.
The optional backlit touch screen interface mounted in the electronics module, provides an easy-to-read large, bright display of the measured Temperature, as well as controls allowing full configuration of the sensor. The graph view allows viewing the history of the measured temperature.
In alarm condition, the display turns bright red to provide an immediate and obvious alarm indication. The alarm levels and modes can be configured from the touch screen.
Option :
(1) Field of View select from:
SN151 for 15 to 1 Optics (100 to 400°C -PT range only)
SN251 for 25 to 1 Optics
SN751 for 75 to 1 Optics
SN801 for Focus Optics 60 mm @ 1500 mm-
(2) Output select from:
MA for 4-20 mA (no display) Fixed Range
D-MA for 4-20 mA with touch screen display adjustable range & 2 alarm relays
C4 for RS485 MODBUS output (no display) digital output full temperature range
D-C4 for RS485 MODBUS output with touch screen display full temperature range & 2 alarm relays
(3) Temperature Range select from:
PT for 100 to 400°C
MT for 250 to 1000°C
HT for 450 to 2000°C
Note: All combinations may not be valid, check spec sheet for valid part numbers.
