Popis
These block style surface thermocouple probes have a unique construction that makes them ideal for measuring moving, rotating or stationary surfaces. This family of 88000 probes are extensively used in the following industries: paper, fibre, printing, iron and steel. Models are availabel for flat and curved moving surfaces.
Replacement elements for surface probes
High-quality, user-replaceable replacement elements are available for all probes. Replacement elements has been Pre-Aged to assure maximum accuracy. The probe is ready for immediate use after replacement.

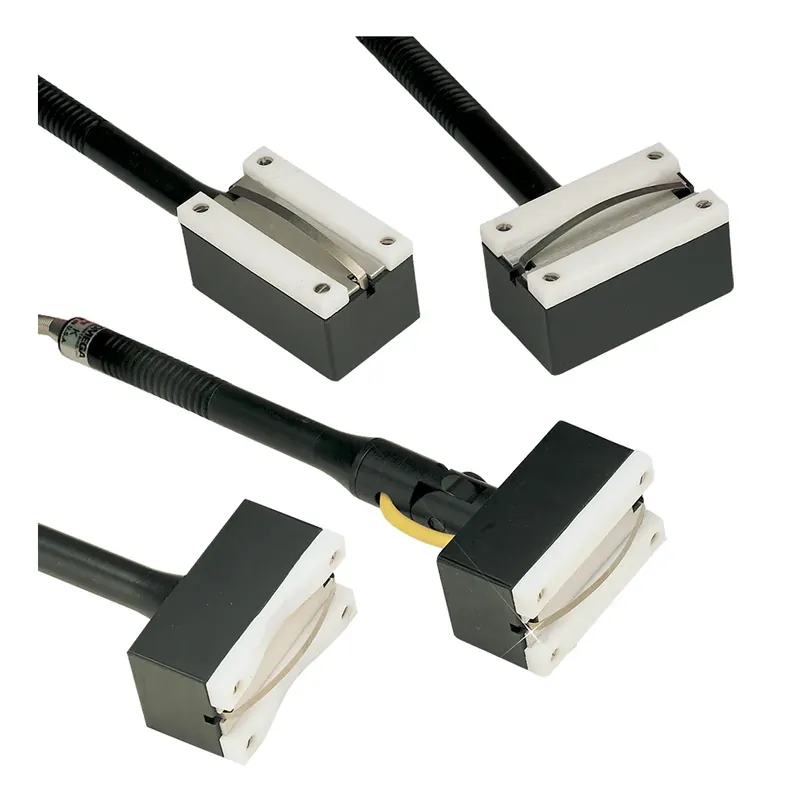

Teflon block surface temperature probes
Model 88220(*) or 98220(*) with Swivel Head
Ideal for measuring the temperature of rollers 100 to 152 mm in diameter, with velocities to 61 m per minute. Max surface temperature of 250°C.
Replaceable Element not supplied, P/N 88220(*)-RE.
Model 88221(*) or 98221(*) with Swivel Head
Ideal for measurements of moving or stationary flat, smooth surfaces. Max surface temperature of 250°C allows for use on both metal and plastic surfaces. Surface velocity of moving surfaces should not exceed 90 m per minute.
Replaceable Element supplied free, for additional elements order P/N 88221(*)-RE.
Model 88222(*)
Right-angle probe ideal for measuring moving or rotating surfaces. Can be used in paper, fiber, printing, iron and steel industries. Max surface temperature of 250°C.
Replaceable Element not supplied, P/N 88222(*)-RE.
Model 88223(*)
Surface probe designed for measuring moving or rotating surfaces. Ideal for surfaces perpendicular to the probe handle. Max surface
temperature of 250°C.
Replaceable Element not supplied, P/N 88223(*)-RE.
Model 88224(*)
Right-angle probe for rotating rollers from 100 to 152 mm in diameter. Max surface temperature of 250°C.
Replaceable Element not supplied, P/N 88224(*)-RE.
Model 88225(*) or 98225(*) with Swivel Head
Right-angle probe for rotating rollers of 300 to 584 mm in diameter. 30 m per minute max velocity, with 250°C max surface temperature.
Replaceable Element not supplied, P/N 88225(*)-RE.
Model 88226(*) or 98226(*) with Swivel Head
Right-angle probe for rotating rollers of 152 to 300 mm in diameter. 61 m per minute max velocity, with 250°C max surface temperature.
Replaceable Element not supplied, P/N 88226(*)-RE.
Model 88227(*) or 98227(*) with Swivel Head
For surface measurements with end braces to minimize flexing due to a moving surface; this also prolongs probe life. PFA sliders ensure smooth operation on both metal and plastic surfaces. 61 meters per minute max velocity, 250°C max surface temperature.
Replaceable Element not supplied, P/N 88227(*)-RE.
* Specify Calibration:
K: CHROMEGA-ALOMEGA
E: CHROMEGA-Constantan
Complete informations can be found in the spec sheet (PDF), see the „Download“ section.
