Popis

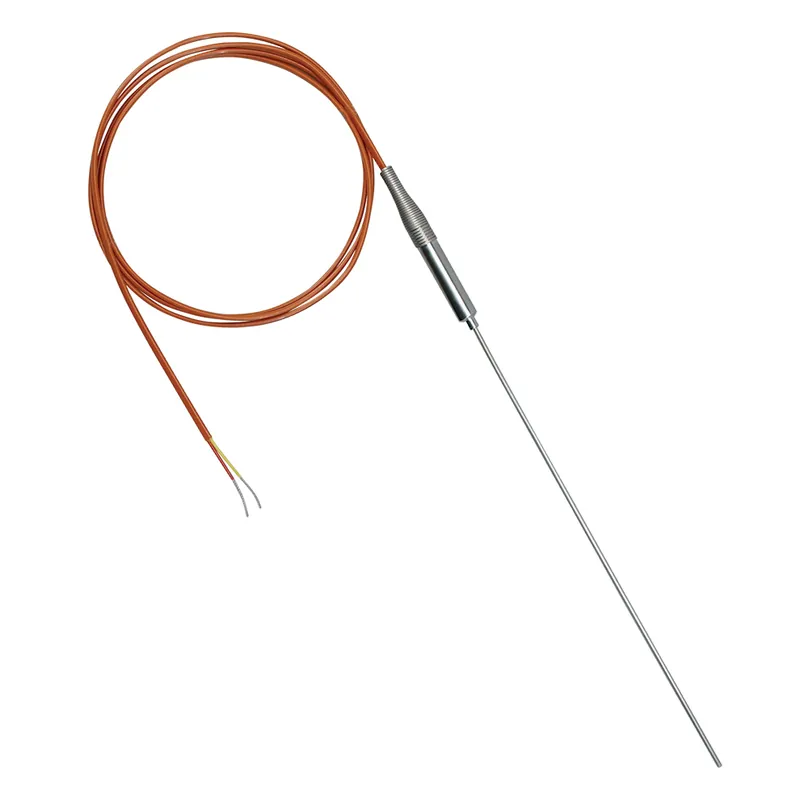

OMEGA heavy duty transition joint probes are manufactured from class 1 tolerance MI cable and feature a convenient pot-seal termination to PFA-coated lead wire. The transition joint and spring for strain relief are 66 mm long. The joint diameter is 6,4 mm for 1,6 and 3,2 mm Dia probes, 9,7 mm for 4,8 and 6,4 mm Dia probes. The semi-rigid MI sheath can be formed to suit many applications.
The probes are also available with a Super OMEGACLADXL sheath.
Comes with bare stripped ends as standard. You can order the probe, including the installation of connector. Put the required connector in the basket together with the probe. If needed, order the required connector separately, see „Accessories“ below.
The online configurator may not contain all available options. If you do not find what you are looking for, please contact us.
Complete informations can be found in the spec sheet (PDF), see the „Download“ section.
Option :
(1) PFA Lead Length select from:
1 for 1 metre
2 for 2 metres
5 for 5 metres
(2) Thermocouple Type select from:
CA for K type
IC for J type
CP for T type
NN for N type
(3) Sheath Material select from:
SS for Stainless steel
IN for Inconel
XL for SuperOMEGACLADXL
(4) Sheath Diameter select from:
15 for 1.6 mm
30 for 3.2 mm
45 for 4.8 mm
60 for 6.4 mm
(5) Thermocouple Junction select from:
U for Insulated/Ungrounded
G for Grounded
E for Exposed
(6) Sheath Length select from:
150 for 150mm
300 for 300mm
600 for 600mm
Note: All combinations may not be valid, check spec sheet for valid part numbers.
