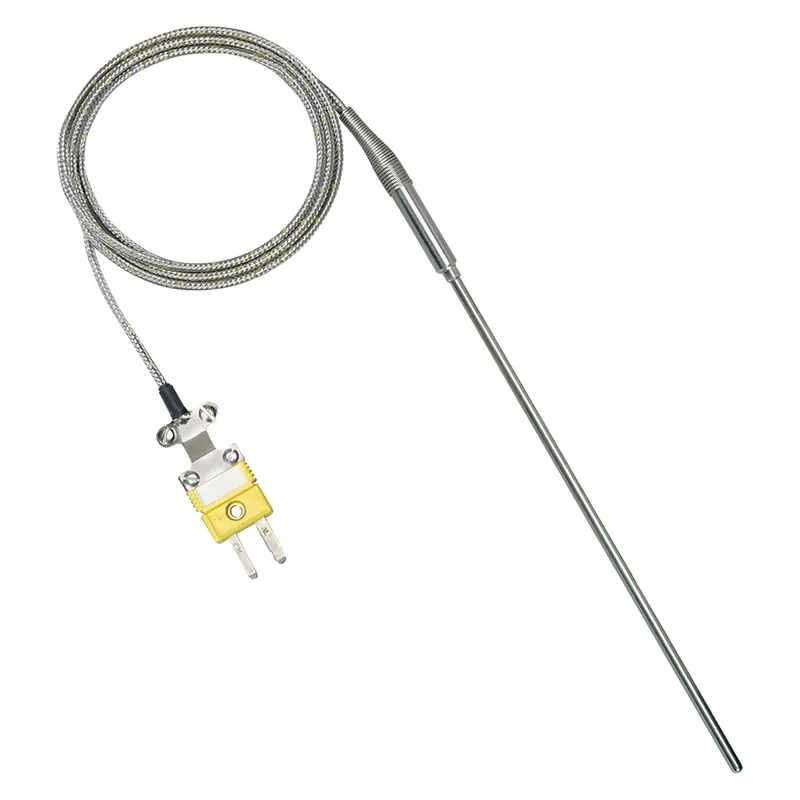

For long life, drift-free operation, choose Super OMEGACLAD® XL mineral insulated thermocouple cable and our rugged transition joint probes, which are available in Type K and N calibrations. PFA lead wire with a stainless steel overbraid resists abrasions and provides a cost-effective solution for environmental temperatures to 260°C.
Complete informations can be found in the spec sheet (PDF), see the „Download“ section.
Option :
TJ36-(1)(2)-(3)(4)-(5)-SB-SMPW-M
(1) Thermocouple type:
CA pro typ K
IC pro typ J
CP pro typ T
NN pro typ N
(2) Sheat material:
SS pro nerez typu 304
IN pro Inconel®
XL pro Super OMEGACLAD® XL
(3) Diameter:
116 pro průměr 1.5mm
18 pro průměr 3mm
316 pro průměr 4.5mm
14 pro průměr 6mm
(4) Measurind end type:
G pro uzemněný
E pro otevřený
U pro neuzemněný
(5) Lenght:
6 pro délku 150mm
12 pro délku 300mm
18 pro délku 450mm
Note: All combinations may not be valid, check spec sheet for valid part numbers.
