Popis

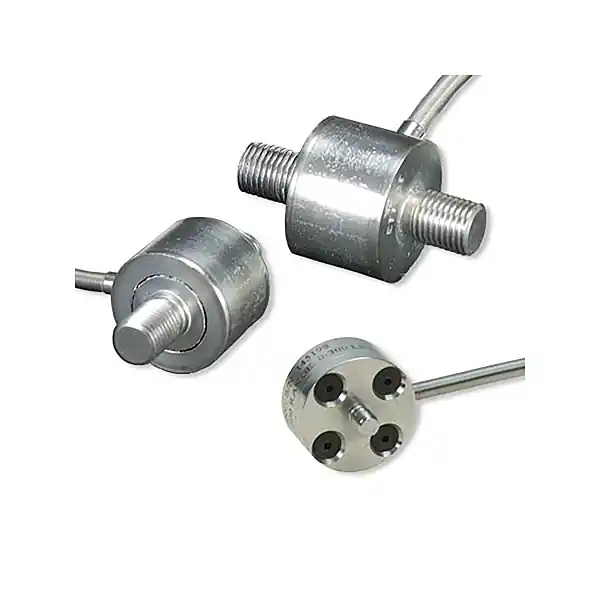

OMEGAs LCM202 Series Load Cell offers the designer a compact series with ranges from 100 to 50,000 N and accuracy of 0.25%. The all stainless steel construction and rugged design assure long life in industrial and commercial applications.
SPECIFICATIONS:
Excitation: 10 Vdc, 15 Vdc max
Output: 2 mV/V nominal
Accuracy: ±0.25% FSO(Linearity, Hysteresis, Repeatability Combined)
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Zero Balance: ±2% FSO
Operating Temp Range: -54 to 121°C
Compensated Temp Range: 16 to 71°C
Thermal Effects: Zero: 0.009% FSO/°C Span: 0.009% FSO/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Input Resistance: 360 Ohms minimum
Output Resistance: 350 ±10 Ohms
Construction: Stainless Steel
Electrical: 1.5 m 4-core cable
Protection Class: IP65
